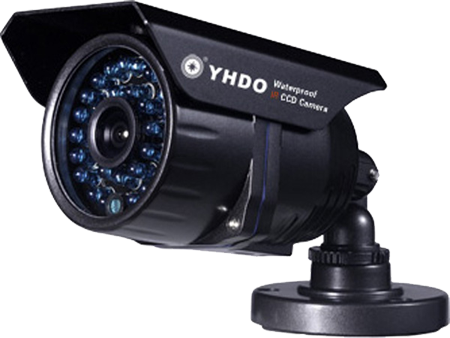

YHDO IR Box 8002 CCTV Camera

YHDO IR Box 8002 CCTV Camera





















Specifications

Items YHDO 555LT
Pick up Element 1/3" Sony CCD image sensor
Number of Pixels PAL:512(H)×582(V)NTS:512(H)×492(V)
Resolution 450 TV lines
Min. Illumination 0Lux/F1.2-IR ON
System of signal NTSC/PAL
IR Effective Range Up to 30 meters
S/N Ratio 48db
Electronic Shutter 1/50(1/60)~1/100,000sec
Lens 16mm,6mm/8mm/12mm(Optional)
Wavelength 850nm
Video Output 1.0Vp-p/75Ω
Operating Temperature -20C*~50C*
Power Source (�10%) DC12V
Weight 650g
Dimension (mm)** 135(L) ×67(D) ×69(H)
