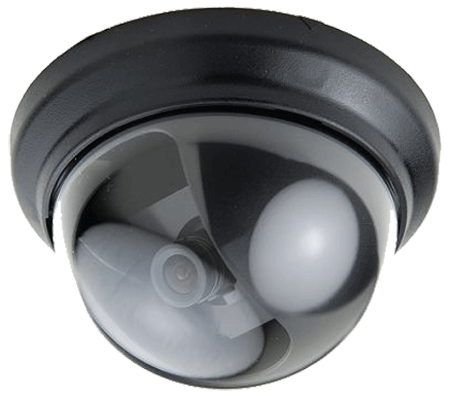

Avtech KPC 132 IR Doom CCTV Camera

Avtech KPC 133 IR Doom CCTV Camera












Items Avtech KPC 132
Pick up Element 1/3″ Color CCD image sensor
Number of Pixels 512(H) x 492(V) <NTSC> / 512(H) x 582(V) <PAL>
Resolution Standard
Min. Illumination 0.05 Lux / F2.0
Electronic Shutter 1/60 (1/50) to 1/100,000 sec.
IR Effective Range Up to 10 meters
S/N Ratio More than 48dB (AGC off)
Electronic Shutter 1/60 (1/50) to 1/100,000 sec.
Lens F3.6mm / F2.0
Lens Mount C/CS mount changeable
Lens Angle 92.6°
White Balance ATW
Gain Control AGC
Video Output 1.0Vp-p composite, 75?
Operating Temperature 0?~40?
Power Source (�10%) DC12V
Current Consumption (�10%) 110mA
Dimension (mm)** 110mm(D) x 60mm(H)
Weight 78.5g
