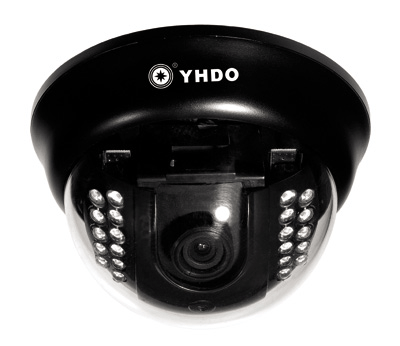

| Items | YHDO 804 Doom |
|---|---|
| Pick up Element | 1/3 Sony CCD |
| Number of Pixels | PAL:512(H)�582(V) |
| NTSC 512(H) ×492(V) | |
| Min. Illumination | 0Lux/1.2-IR ON |
| Horizontal resolution | 450 TV Line |
| IR Effective Range | Up to 15 meters |
| S/N Ratio | >52dB, >48dB |
| Electronic Shutter | 1/50(1/60)~1/100,000sec |
| Lens | 3.6mm/6mm(Optional) |
| Wavelength | 850nm |
| Video Output | 1.0Vp-p/750 |
| Operating Temperature | -20C*~50C* |
| Power Source (�10%) | DC12V |
| Current Consumption (�10%) | 90mA (IR OFF); 450mA (IR ON) |
| Dimension (mm)** | 126(D) ×77(H) |
| White balance | Auto |
| Backlight compensation | Auto |
| Sync. System | Internal |
| IR LED | 21 |
