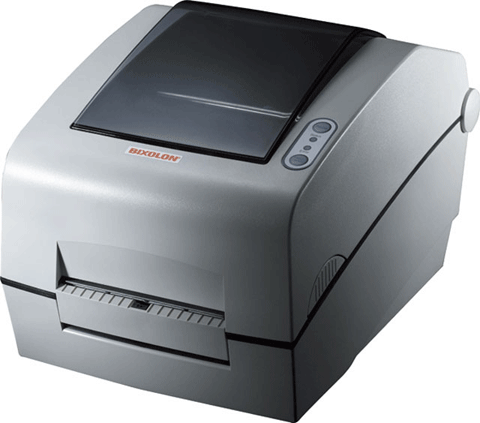

Barcode Printer Bixilon SLP T400













Items Bixilon SLP T400
Printing Method Direct Thermal / Thermal Transfer
Resolution 203dpi(8dot/mm), Optional 300dpi
Printing Speed 150mm / sec (6 IPS)
Print length 6 ~ 1,000mm(39.4")
Print width 104mm
Media width 1.00”/25.4 mm to 4.25”/108 mm
Character Alphanumeric Character : 95
Extended Character : 128 X 23 pages
International Character : 32
Resident Bitmap Fonts : 10
Sensor Transmissive sensor, Reective sensor
(Position adjustable), Ribbon-End, Head Open sensor
Paper Type: Gap, Notch,Black Mark,Continuous, Fan-Fold
Width: 25~116mm(1~4.6")
ID: 25.4~38.1mm(1~1.5"),
OD: Max 130mm(5.1"), Max 220mm(External)

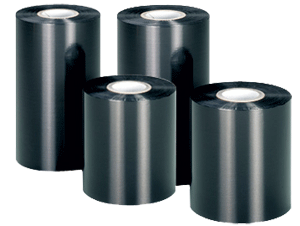

Ribbon Type: Wax, Wax/Resin, Resin --> Outside Type
Width: 33~110mm(1.3~4.3")
Lenght: Max 300m
Core ID: 12.5mm, 25.4mm
Interface Standard : Serial / Parallel / USB (optional External Ethernet)
Ethernet version : Serial / Ethernet / USB
Text Printing Multiply, Bold, Reverse and Rotation Functions
Block Printing Line, Box, Slope printing supported
Overwrite, Exclusive or Delete mode supported
Bar Codes 1D : EAN-8, EAN-13, Code 39, Code 93, Code 128,
I 2 of 5, ITF, Coda bar, UPC-A, UPC-E
2D : PDF417, QR code, Maxi code, Data Matrix
Graphic PCX, BMP
