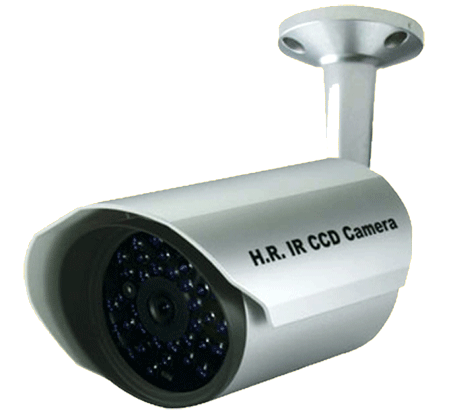

| Items | Avtech KPC 172 |
|---|---|
| Pick up Element | 1/3" H.R Color CCD image sensor |
| Number of Pixels | 768(H) x 494(V) / 752(H) x 582(V) |
| Resolution | 520 TV lines |
| Min. Illumination | 0.3Lux/F2.0 (IR OFF), 0Lux (IR ON) |
| IR LED | 21 units |
| IR Effective Range | Up to 25 meters |
| S/N Ratio | More than 48dB (AGC off) |
| Electronic Shutter | 1/60 (1/50) to 1/100,000 sec. |
| Lens | f3.6mm / F2.0 |
| Lens Angle | 92.6° |
| IRIS Mode | AES |
| Video Output | 1.0 Vp-p composite, 75Ω |
| IP Rating | IP67 |
| Power Source (±10%) | DC12V |
| Current Consumption (±10%) | 90mA (IR OFF), 340mA (IR ON) |
| Dimension (mm)** | 142(H) x 75 () |
