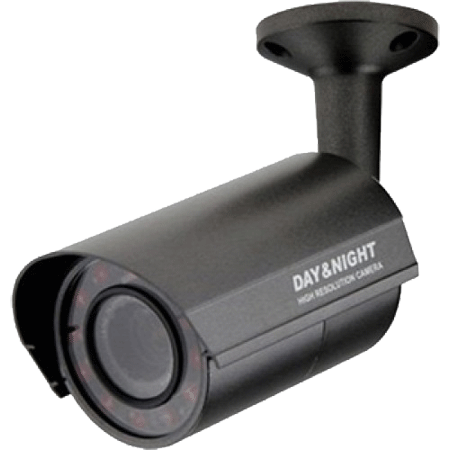

| Items | Avtech KPC 172 |
|---|---|
| Pick up Element | 1/3" H.R. image sensor |
| Number of Pixels | 728(H) x 488(V) |
| Resolution | 540 TV lines |
| Min. Illumination | 0.1Lux (15 IRE) / F2.0; 0 Lux (IR ON) |
| IR LED | 12 units |
| IR Effective Range | Up to 15 meters |
| S/N Ratio | More than 48dB (AGC off) |
| Electronic Shutter | 1/60 (1/50) to 1/100,000 sec. |
| Lens | f3.8mm ~ f9.5mm Vari Focal Lens |
| Lens Angle | 85.4° ~ 36° |
| IRIS Mode | AES |
| Video Output | 1.0 Vp-p composite, 75Ω |
| IP Rating | IP66 |
| Power Source (�10%) | DC12V |
| Current Consumption (�10%) | 63.5mA(IR OFF), 220mA (IR ON) |
| Dimension (mm)** | 60(H) x 97(Φ) |
