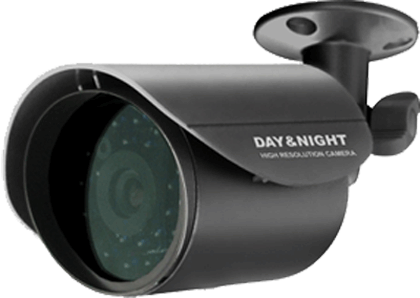

Avtech AVC 452 IR Box CCTV Camera

Avtech AVC 452  IR Box CCTV Camera












Items Avtech AVC 452
Pick up Element 1/3” Color CCD with Sony Effio DSP
Number of Pixels 771(H) x 492 (V) <NTSC>
Resolution Super High resolution
Min. Illumination 0.1Lux / F2.0 / 0Lux (IR ON)
IR LED 21 units
IR Effective Range 15 Meters
S/N Ratio More than 48dB (AGC off)
Electronic Shutter 1/60 (1/50) to 1/100,000 sec
Lens F3.6mm /F2.0
Lens Angle 92.6�
AGC Auto
White Balance ATW
IP Rating IP67
Video Output 1.0 Vp-p composite, 75Ω
Operating Temperature -20 C~ 40 C
Power Source (�10%) DC12V
Current Consumption (�10%) 70mA (IR OFF), 270mA (IR ON) ±10%
Dimension (mm)** 142mm x 75mm
Country of Origin Taiwan
