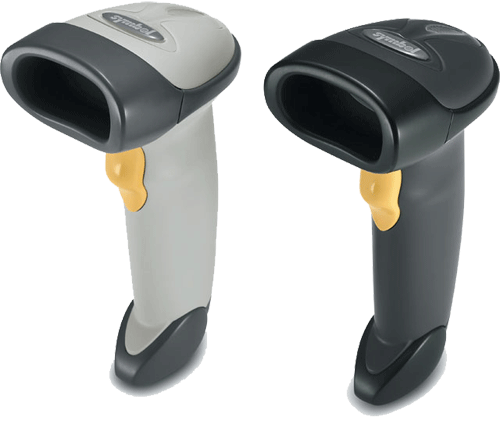

| Items | Symbol LS 2208 |
|---|---|
| Dimensions | 6 in. H x 2.5 in. W x 3.34 in. D |
| 15.2 cm H x 6.3 cm W x 8.4 cm | |
| Weight | 5.15 oz./146 gm |
| Voltage and Current | 5 volts +/- 10% at 130 mA typical, 175 mA max |
| Scanner Type | Bi-directional |
| Light Source | 650 nm visible laser diode |
| Scan Element Frequency | 50Hz |
| Scan Rate | 100 scans per second typical |
| Print Contrast | 20% minimum reflective difference |
| Roll (Tilt) | 1 +/- 30 degrees |
| Pitch | 2 +/- 65 degrees |
| Skew (Yaw) | 3 +/- 60 degrees |
| Decode Capability | UPC/EAN, UPC/EAN with Supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar ( RSS) variants, Chinese 2 of 5 |
| Interfaces | USB, RS232, Keyboard Wedge, Wand |
| Supported | IBM 468x/9x, Synapse and Undecoded |
| Operating Temp | 32° to 122° F/0° to 50° C |
| Storage Temp | -40° to 158° F/-40° to 70° C |
| Humidity | 5% to 95% relative humidity, noncondensing |
| Electrical Safety | Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950 |
